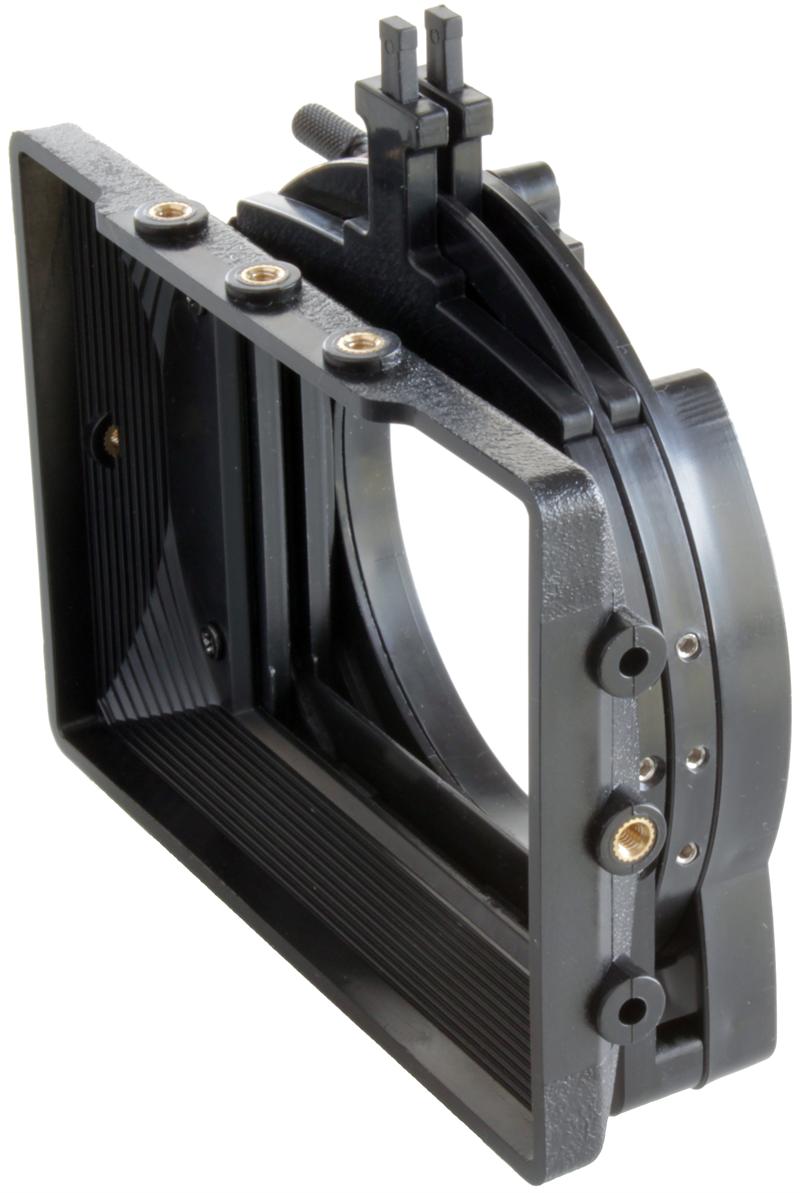

3x3 Matte Box without Flaps for 80mm OD Lenses (Metal Trays)

Price: USD $90.00

Item Number: MB3485B-80-M

Quantity:

Key Features:

Includes 80mm Adapter Ring (ARP380) to clamp onto lenses with 80mm front outside diameter (such as some Zeiss and Samyan cine lenses)
Has a special back-mount that allows the use of other ARP3 series plastic insert step-down rings (not included)
Includes metal filter trays for added durability
Can be used as a clamp-on type, or with either 8mm or 15mm rods support system
270º Rotating filter stage for use with polarizing and graduated filters
Ideal for DSLR cameras but also fits a large variety of other cameras and lenses including Broadcast and prosumer HD
Lightweight: ideal for use on smaller cameras and when mobility is required
New wider shade allows for wider lenses to be used
Unbelievable price; most affordable professional matte box on the planet
Most Advanced 3x3 matte box in the world
Adapter ring to allow matte box to be used on 5D MII/MIII with 24-105mm lens (at widest angle with no vignetting) now available!
Optional accessories: 3x3 (ABS or metal) & 3x4 Filter Trays, 3x3" and 3x4" Glass Filters, Expandable Top Flap and Expandable Side Flaps; ARP3 series (plastic step-down) or AR series (threaded) adapter rings*; adapter ring for 24-105 lens; rods support systems; 3x3" glass filters
Follow focus, handgrips, shoulder pads also available

Optional Adapter Rings:

To clamp onto lenses with a below 80mm front outside diameter use ARP38- series plastic insert rings (note already includes ARP380).
For lenses with filter threads (such as DSLR) use a medium-thick (for clamp-on) or thin (for rods support) AR series ring with 82mm front thread (i.e 85mm front outside diameter); note, for lenses with a relatively wide angle it may be necessary to use an offset or deep offset threaded ring.
Note: when using rods: for lenses under 80mm a donut ring can be used as well.

Specifications:

Filter trays: 2 total, 1 rotatable
Degree of rotation: 270^o
Filter size: 3x3" glass or resin (max thickness of 4mm) in filter trays; cokin "P" filters fit loosely in filter stage slots only (not in filter trays)
Back mount opening: Ø85mm
Fit Lens filter thread: 82, 77, 72, 62, 67, 58 & 52mm (*with appropriate adapter rings )
Fit DSLR lens wide angle: APS-C: 15mm & up. Full frame: 35mm & up (may work at wider angles on lenses with less than 77mm filter diameter; may also work on wider lenses if clamped directly on lens front)
Construction: Aluminum & ABS
Filter tray material: Metal
Hard Shade Material: ABS
Dimensions: 14 X 13 X 4.5 cm
Weight: 180g
